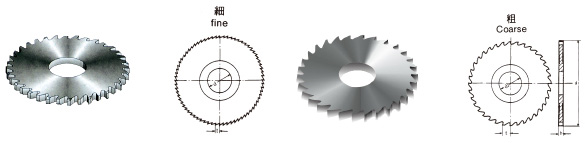

| 硬質(zhì)合金鋸片銑刀 |
|
| D(mm) |
b(mm) |
d(mm) |
齒數(shù) number of teeth |
| 基本尺寸 |
極限偏差 |
基本尺寸 |
極限偏差 |
基本尺寸 |
極限偏差 |
| Size |
Tolerance |
Size |
Tolerance |
Size |
Tolerance |
| 12 |
0.135 |
0.2-4.5 |
±0.005 |
6 |
H7 |
可按用戶要求制作 |
| 16 |
0.020 |
0.16-4.5 |
±0.005 |
8 |
H7 |
| 20 |
0.165 |
0.16-4.5 |
±0.005 |
8 |
H7 |
| 25 |
0.165 |
0.2-4.5 |
±0.005 |
8 |
H7 |
| 27 |
0.165 |
0.2-4.5 |
±0.005 |
8/12.7 |
H7 |
| 30 |
0.195 |
0.2-4.5 |
±0.005 |
8/12.7 |
H7 |
| 32 |
0.195 |
0.2-4.5 |
±0.005 |
8/12.7 |
H7 |
可按用戶要求制作 |
| 40 |
0.195 |
0.2-4.5 |
±0.005 |
12.7 |
H7 |
| 45 |
0.020 |
0.2-4.5 |
±0.005 |
12.7 |
H7 |
| 50 |
0.195 |
0.2-4.5 |
±0.005 |
12.7 |
H7 |
| 55 |
0.230 |
0.2-4.5 |
±0.005 |
16 |
H7 |
| 60 |
0.230 |
0.2-5.0 |
±0.005 |
16/20 |
H7 |
| 63 |
0.230 |
0.2-5.0 |
±0.005 |
16/20 |
H7 |
| 70 |
0.230 |
0.3-5.0 |
±0.005 |
12.7/25.4 |
H7 |
| 75 |
0.230 |
0.3-5.0 |
±0.005 |
12.7/25.4 |
H7 |
可按用戶要求制作 |
| 80 |
0.230 |
0.4-5.0 |
±0.005 |
25.4/31.75 |
H7 |
| 85 |
0.230 |
0.4-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 90 |
0.230 |
0.4-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 95 |
0.230 |
0.4-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 100 105 |
0.270 0.270 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 105 |
0.270 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 110 |
0.270 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
可按用戶要求制作 |
| 115 |
0.270 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 120 |
0.270 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 125 |
0.315 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 150 |
0.315 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
| 200 |
0.315 |
0.5-5.0 |
±0.010 |
25.4/31.75 |
H7 |
|
|
|
|
