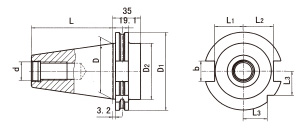

JT type GB10944(ISO7388/1-1983與 is similar to DIN 69871/1-1995 of Germany)
| Model of shank |
D |
D1 |
D2 |
d |
L |
L1 |
L2 |
L3 |
b |
| JT30 |
31.75 |
50 |
31.8 |
M12 |
47.8 |
16.4 |
19 |
15 |
16.1 |
| JT40 |
44.45 |
63.55 |
44.7 |
M16 |
68.4 |
22.8 |
25 |
18.5 |
| JT45 |
57.15 |
82.55 |
57.4 |
M20 |
82.7 |
29.1 |
31.3 |
24 |
19.3 |
| JT50 |
69.85 |
97.5 |
70.1 |
M24 |
101.75 |
35.5 |
37.7 |
30 |
25.7 |

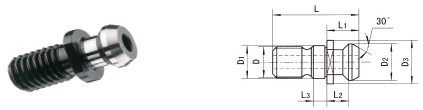

LDA type GB10945(ISO 7388/2)
| Model of rivet |
D |
D1(h6) |
D2 |
D3 |
L |
L1 |
L2 |
L3 |
| LDA-30 |
M12 |
13 |
12 |
17 |
44 |
24 |
19 |
5 |
| LDA-40 |
M16 |
17 |
19 |
23 |
54 |
26 |
20 |
7 |
| LDA-45 |
M20 |
21 |
23 |
30 |
65 |
30 |
23 |
8 |
| LDA-50 |
M24 |
25 |
28 |
36 |
74 |
34 |
25 |
10 |
LDB type GB10945(ISO 7388/2)
| Model of rivet |
D |
D1(h6) |
D2 |
D3 |
L |
L1 |
I p … |
L3 |
| LDB-30 |
M12 |
13 |
13.3 |
18 |
27 |
11.8 |
8.15 |
5 |
| LDB-40 |
M16 |
17 |
18.95 |
23 |
44.5 |
16.4 |
11.15 |
7 |
| LDB-45 |
M20 |
21 |
24.05 |
30 |
56 |
20.95 |
14.85 |
8 |
| LDB-50 |
M24 |
25 |
29.1 |
36 |
65.5 |
25.55 |
17.95 |
10 |
|
