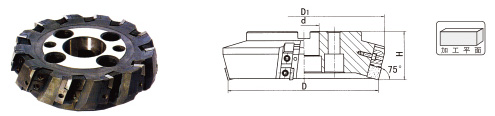

| Indexable facing mill Kr75° |
|
| Model Specification |
Number of teeth Z |
Size |
Installation |
Blade |
Parts |
| D |
D1 |
H |
d |
Type |
lock block |
Shim |
Eccentric pin |
Double screw |
Wrench |
| LMA 63 |
3 |
63 |
76 |
50 |
22 |
A |
SFCN1203EFR |
GMAL01 |
LMA- 02A |
GMA- 02A2 |
GML99 GML100 |
GML131 GML130 |
| LMA 80 |
4 |
80 |
93 |
27 |
| LMA 100 |
5 |
100 |
113 |
32 |
B |
| LMA 125 |
7 |
125 |
139 |
63 |
40 |
SFCN1504EFR |
GMAL02 |
LMA- 02A1 |
| LMA 160 |
9 |
160 |
174 |
| LMA 200 |
12 |
200 |
214 |
60 |
C (CA) |
| LMA 250 |
15 |
250 |
264 |
| LMA 315 |
18 |
315 |
329 |
70 |
| LMA 350 |
20 |
350 |
364 |
| LMA 400 |
24 |
400 |
414 |
| LMA 500 |
30 |
500 |
514 |
| LMA 630 |
36 |
630 |
644 |
80 |
| LMA 800 |
40 |
800 |
814 |
|
|
|
|
